Polycarbonate Board PC Greenhouse

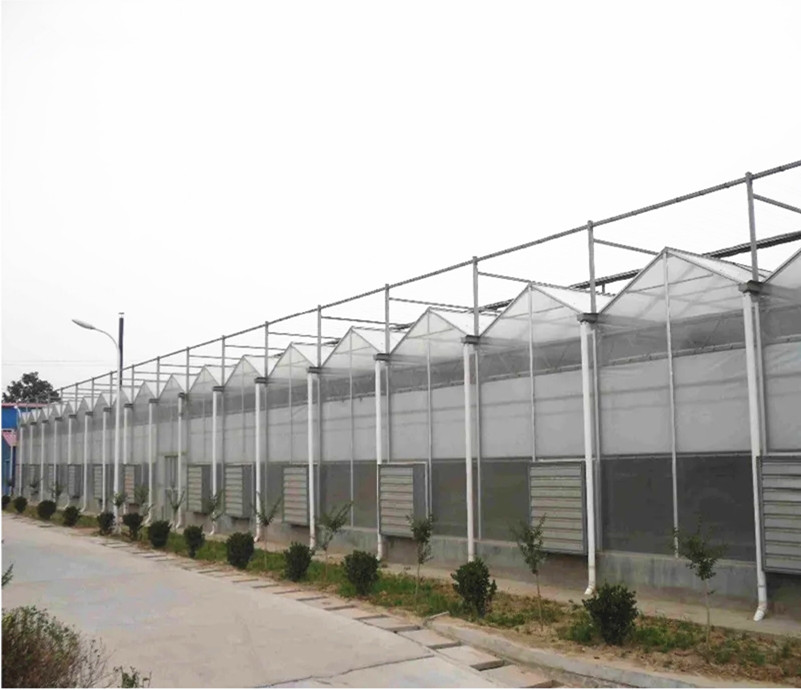

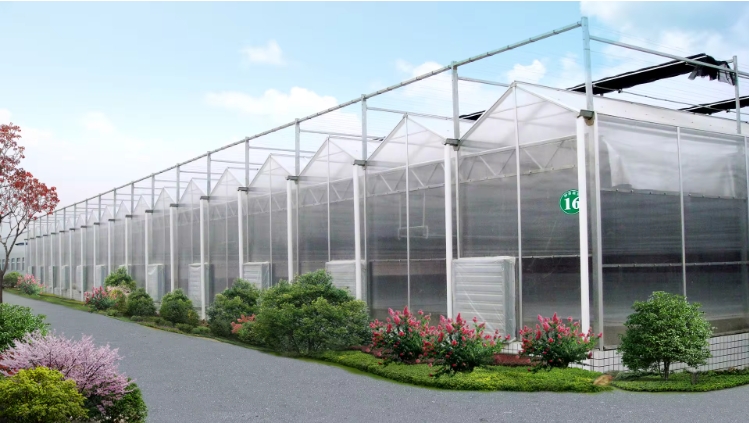

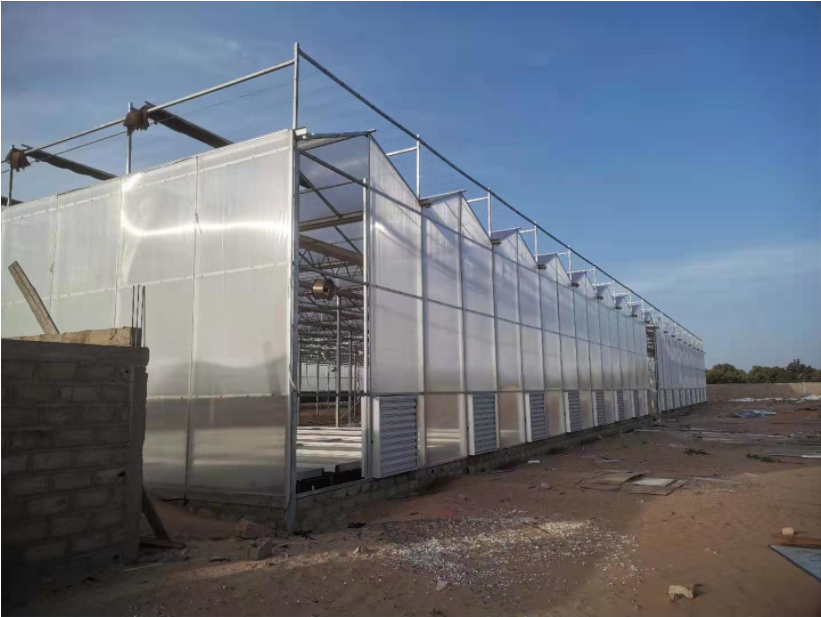

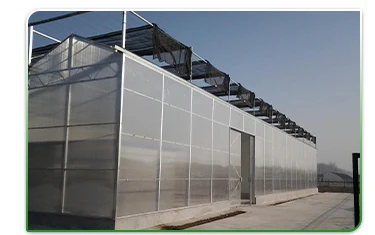

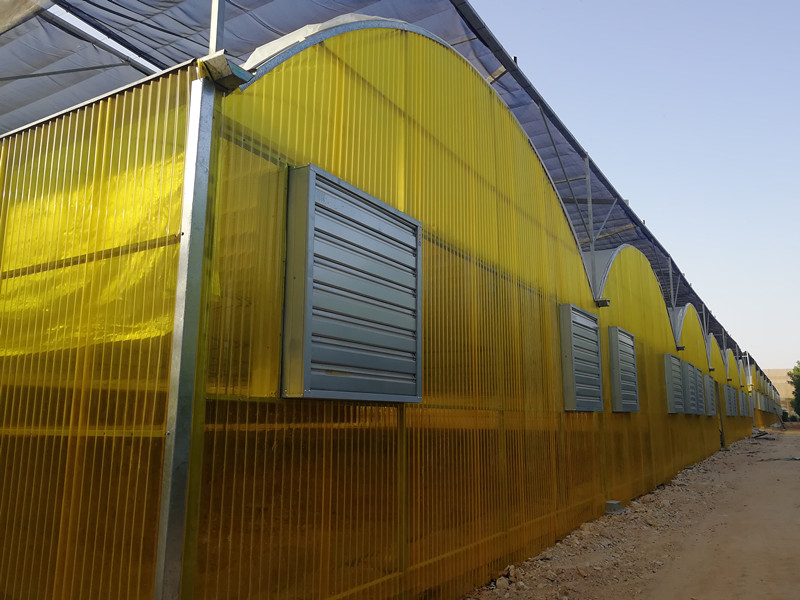

Multi span Polycarbonate Greenhouse (PC Greenhouse) is greenhouse covered PC board, so we also call it Polycarbonate board greenhouse, PC Board Greenhouse. This Polycarbonate board greenhouse has the characteristics of beautiful appearance, simple and stable structure, and strong anti-corrosion. PC Greenhouse can be used in all areas of agriculture such as breeding, kinds of economic plants growing, commercial ecological sightseeing park and scientific research etc.
Polycarbonate board greenhouse(PC Board Greenhouse)

Email

 WhatsApp

polycarbonate greenhouse

PC Greenhouse

A polycarbonate greenhouse (PC Greenhouse) is a modern agricultural structure that utilizes polycarbonate (PC) sheets as its primary covering material. Renowned for their durability, flexibility, and energy-efficient properties, polycarbonate greenhouse offer a versatile solution for year-round plant cultivation, protecting crops from harsh weather while optimizing growth conditions.

Product Name	Polycarbonate Greenhouse(PC Greenhouse)

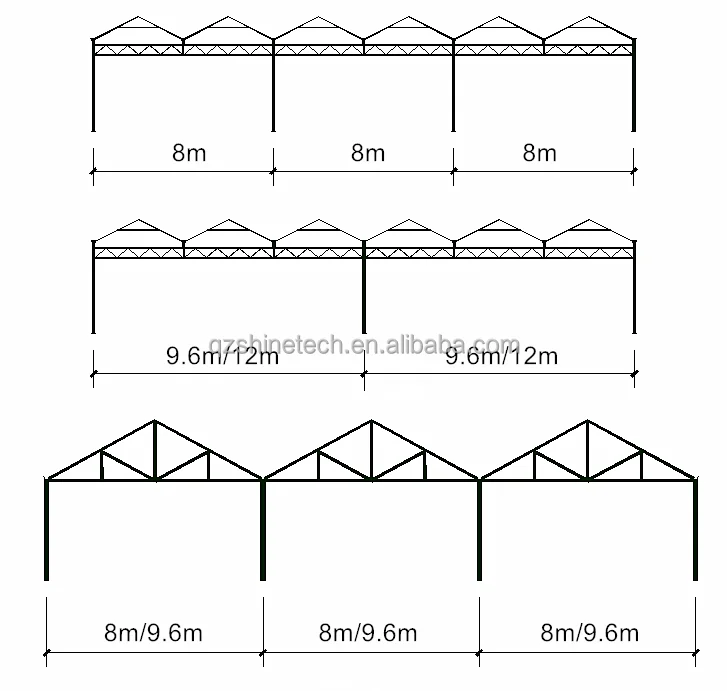

Span width	8m/9.6m/12m (customization)
Bay width	4m (customization)
Height of Greenhouse	4-8m (customization)
Roof Covering	8mm PC sheet
Side covering	8mm PC sheet or Tempered Glass
Wind load	45~55km/m2
Snow load	0.40~0.5KN/m2
Max. rainfall	140mm/h
Hanging load	25~30kg/m2

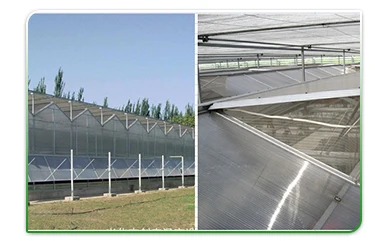

Ventilation system

The PC greenhouse has both side ventilation and top ventilation systems. Good ventilation can constantly supplement the carbon dioxide needed by plants, promote the growth of plants, and also regulate the temperature to provide a good living environment for plants.

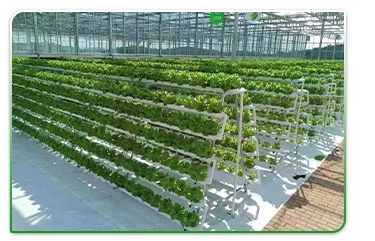

Hydroponic system

Hydroponic system provides more moisture and nutrition for vegetables and fruits. It makes the greenhouse area much cleaner and tidy.

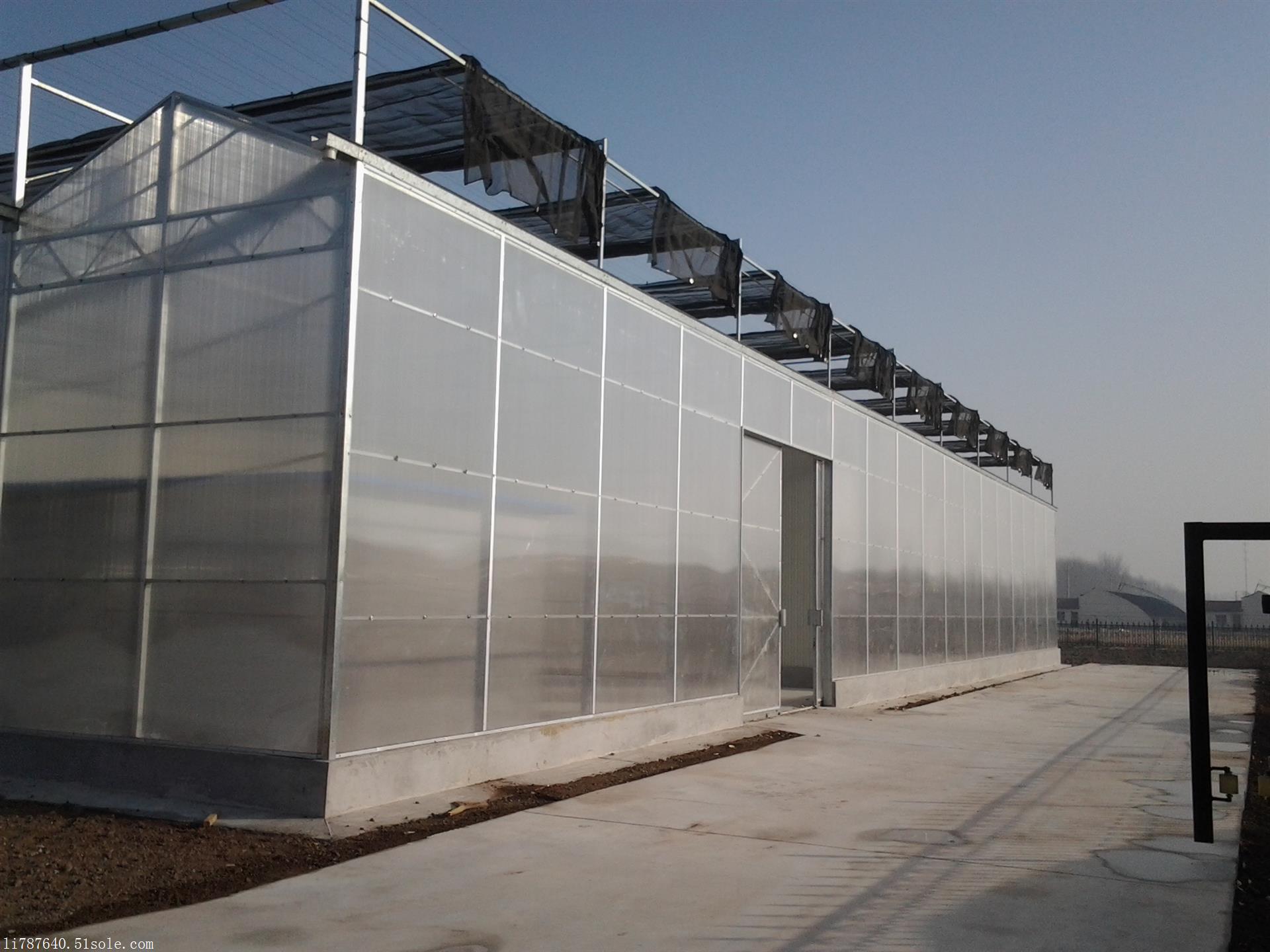

External shading system

Shading net: black round wire shade net with 75% shading rate. Function: Electric control, adjust the light intensity to improve the ecological environment in the greenhouse and lower the temperature.

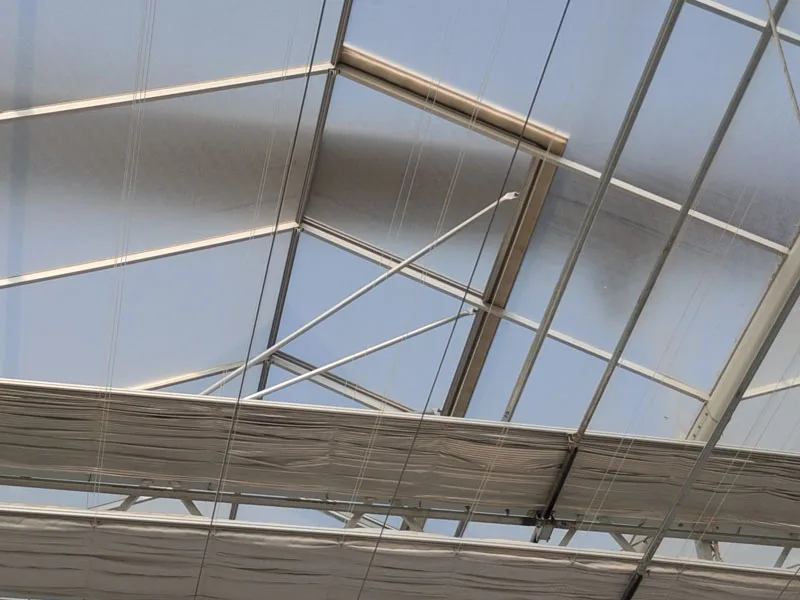

Internal shading system

Shading net: white aluminum foil shade net with 45% shading rate. Function: Electric control, avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.

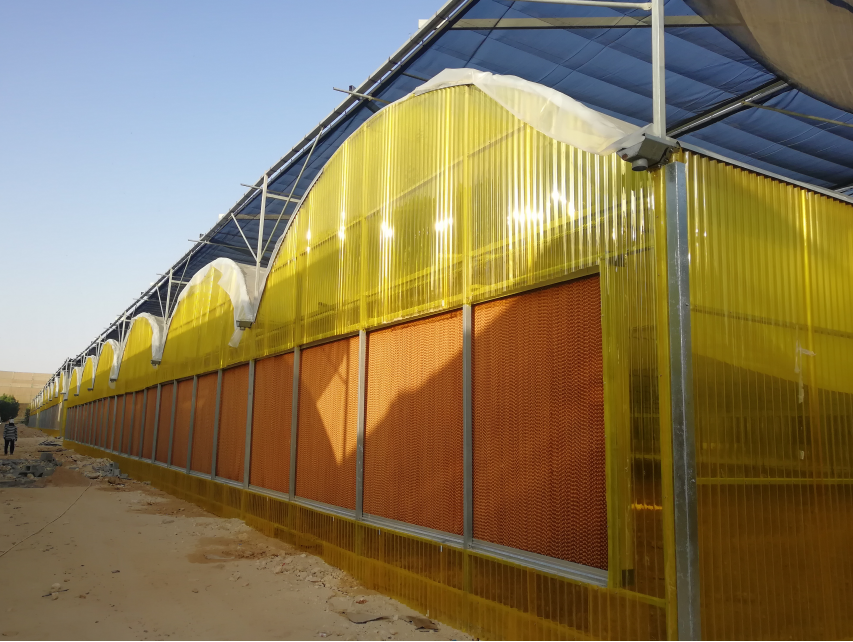

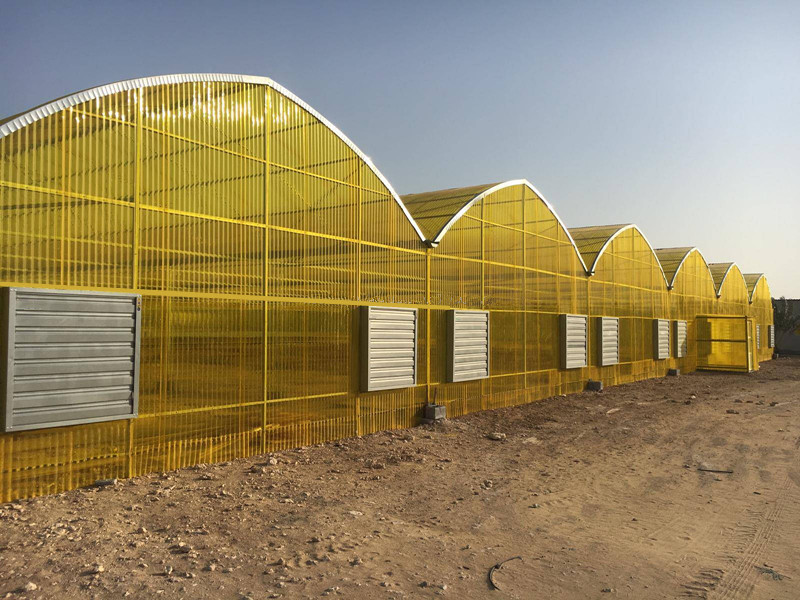

Cooling system

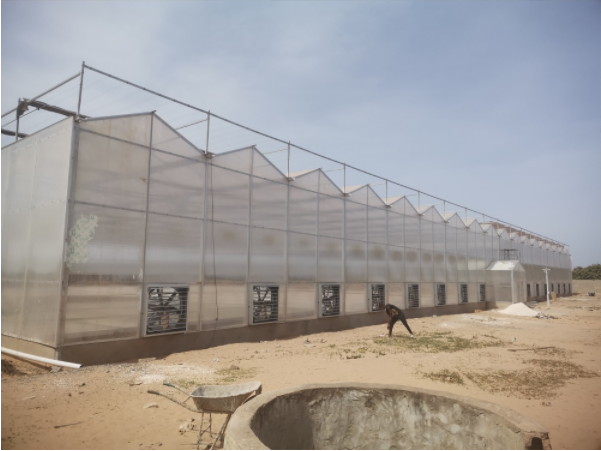

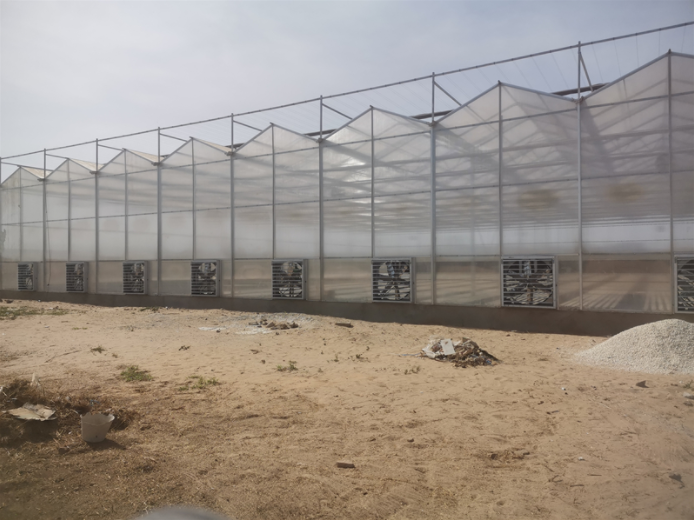

The cooling system including exhaust fan, cooling pad, and water pimp system. The exhaust fans eject the air from the greenhouse , negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of temperature down.

Heating system

The most popular system is electric heating fan, and water boiler with heating blower. We recommend electric heating fan for small greenhouse. Water boiler and heating blower for large commercial greenhouse.

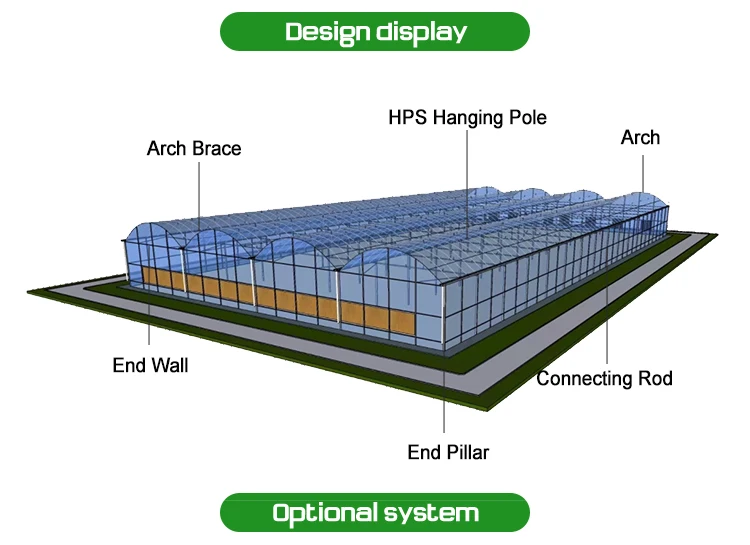

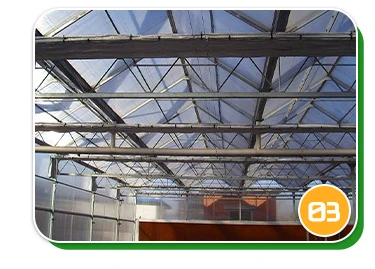

High quality frame

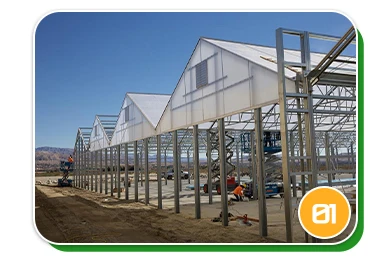

Hot-Dip Galvanized Steel: The most common framework, offering corrosion resistance and structural stability for large-scale PC Board Greenhouse. It supports heavy PC sheets and withstands extreme weather (e.g., wind speeds up to 100 km/h, snow loads of 0.5–1.0 kN/m²).
Aluminum Alloy: Lightweight and rust-resistant, suitable for smaller greenhouses or regions with mild climates.

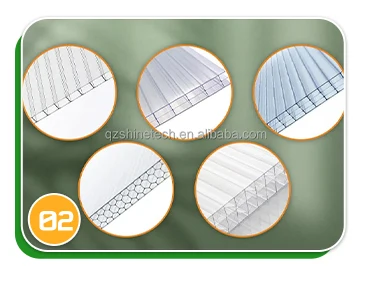

Cover material

Multi-Layer Sheets:
Twin-Wall: Two layers with an air gap (8–16 mm thick) for improved insulation, widely used in temperate and cold regions.

Multi-Cell: Complex cellular structures for maximum thermal efficiency PC Board Greenhouse

Good ventilation

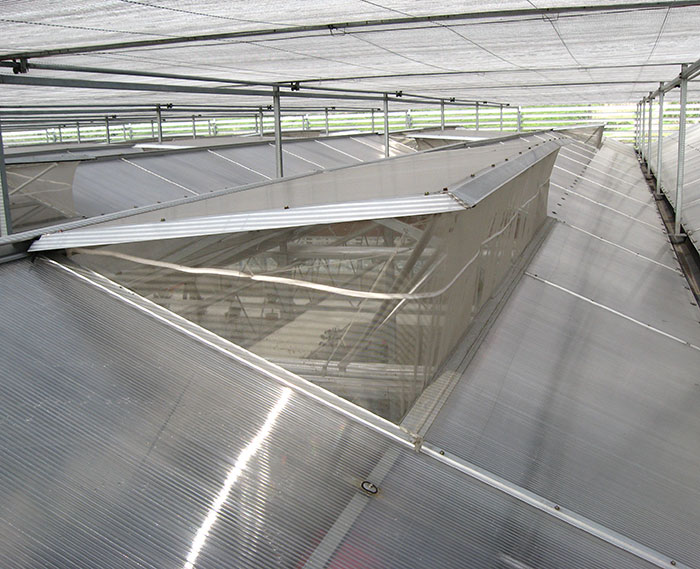

Natural Ventilation: Roof and side vents open automatically (via temperature-sensitive actuators) to release hot air PC Board Greenhouse.
Forced Ventilation: Fan-and-pad systems that draw air through evaporative cooling pads, lowering temperatures by 5–8°C in summer.
Shading Systems: External or internal screens to block excess sunlight, regulate temperature, and protect crops from heat stress.
