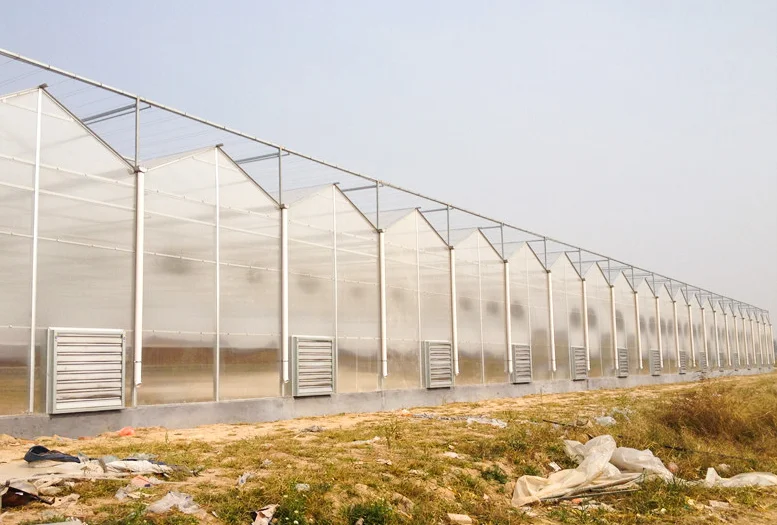

Polycarbonate Panel Sheet Greenhouse

Polycarbonate Sheet greenhouse is normally a twinwall polycarbonate greenhouse structure with vertical sides and interconnected gutters which can be used for a variety of crops. Due to the high roof, it is easier to control the temperature.
Advantage of Polycarbonate Panel greenhouse
1. Galvanized Structure
2. High Quality Greenhouse Polycarbonate sheet
3. Optional system: cooling system,heating system,shading system, ventilation system,etc.
4. Less Initial Investment, Low Running Cost in Winter
5. Anti Drip Design

Email

 WhatsApp

Shine Tech Greenhouse One Stop Service

Polycarbonate sheet greenhouse

Greenhouse Polycarbonate Sheet Characteristics

(1) Light transmittance: the light transmission rate of our twinwall polycarbonate greenhouse Sheet is up to 89%
(2) Impact resistance: the impact strength is 250-300 times of ordinary glass, 30 times of the same thickness of acrylic board, 2-20 times of tempered glass.
(3) Anti UV: one side has the anti-ultraviolet ray (UV) coating, the other side with anti condensation coating.
(4) Light weight: the proportion is only half of the glass, saving the cost of transportation, unloading, installation, and supporting framework.
(5) Flame retardant: national standard GB50222 - 95 confirmed that the PC sheet is B1 level.
(6) Flexibility: twinwall polycarbonate greenhouse sheet can be bent coldly.
(7) Sound insulation: The sound insulation effect of Greenhouse Polycarbonate sheet is obvious.
(8) Energy saving: the hollow twinwall polycarbonate greenhouse sheet keep cool in summer and keep warm  in winter.
(9) Temperature adaptability: it does not have the cold brittleness at -40℃, and not soften at 125℃.
(10) Anti condensation: outdoor temperature of 0℃, indoor temperature of 23℃, the indoor relative humidity less than 80%, inner surface has no condensation.

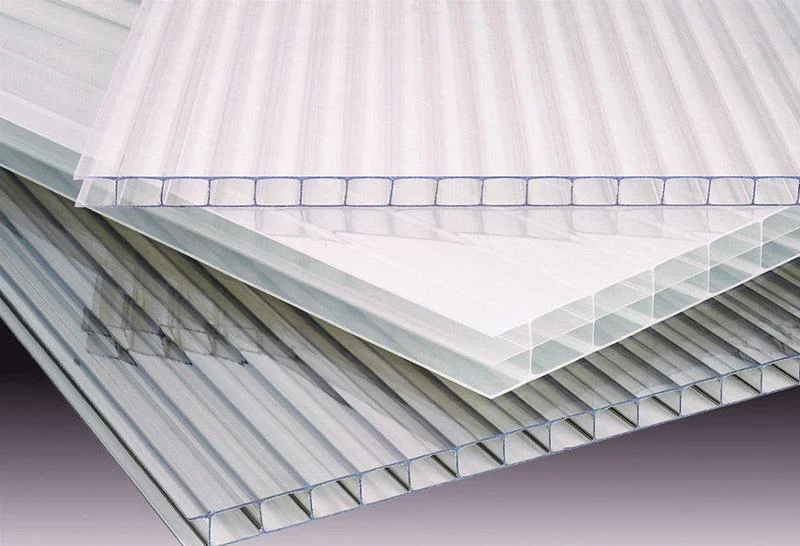

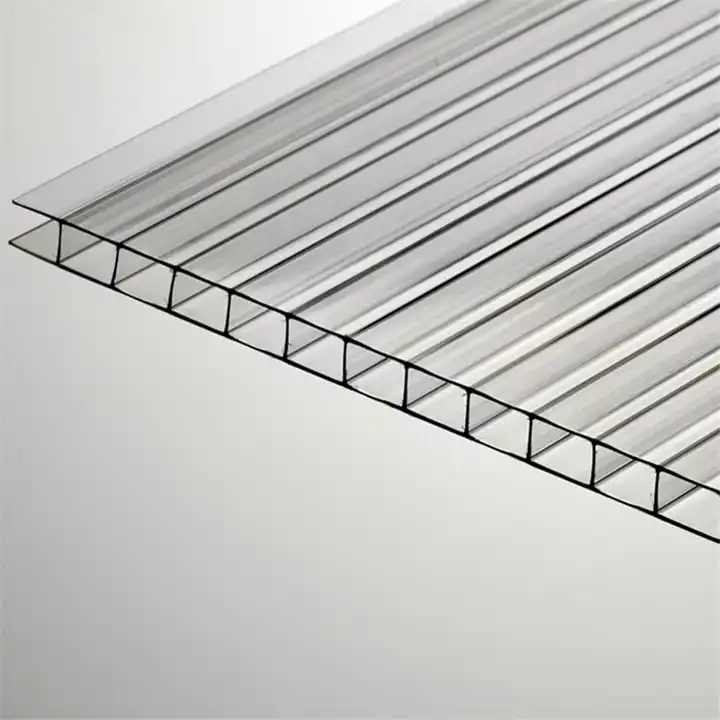

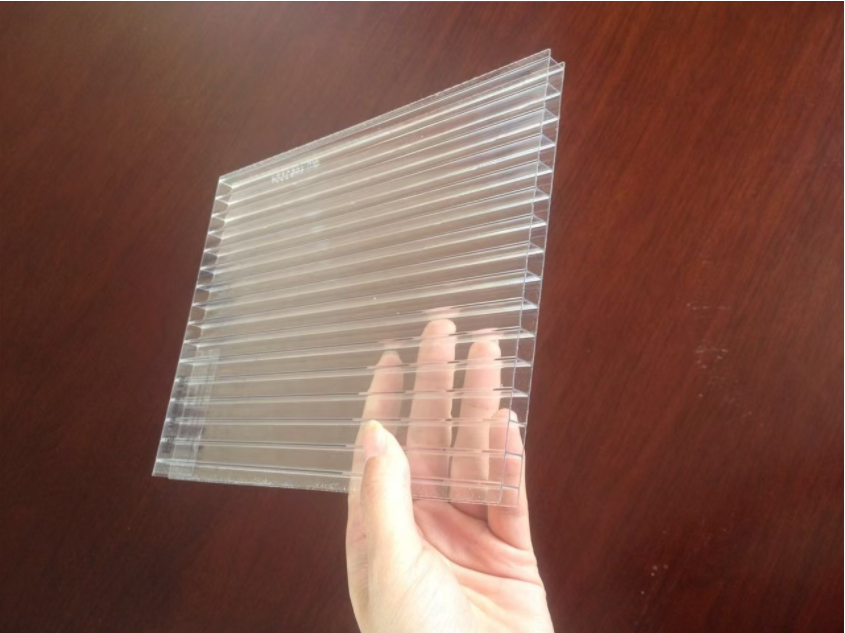

Below picture is twinwall polycarbonate greenhouse Shee
Greenhouse Production

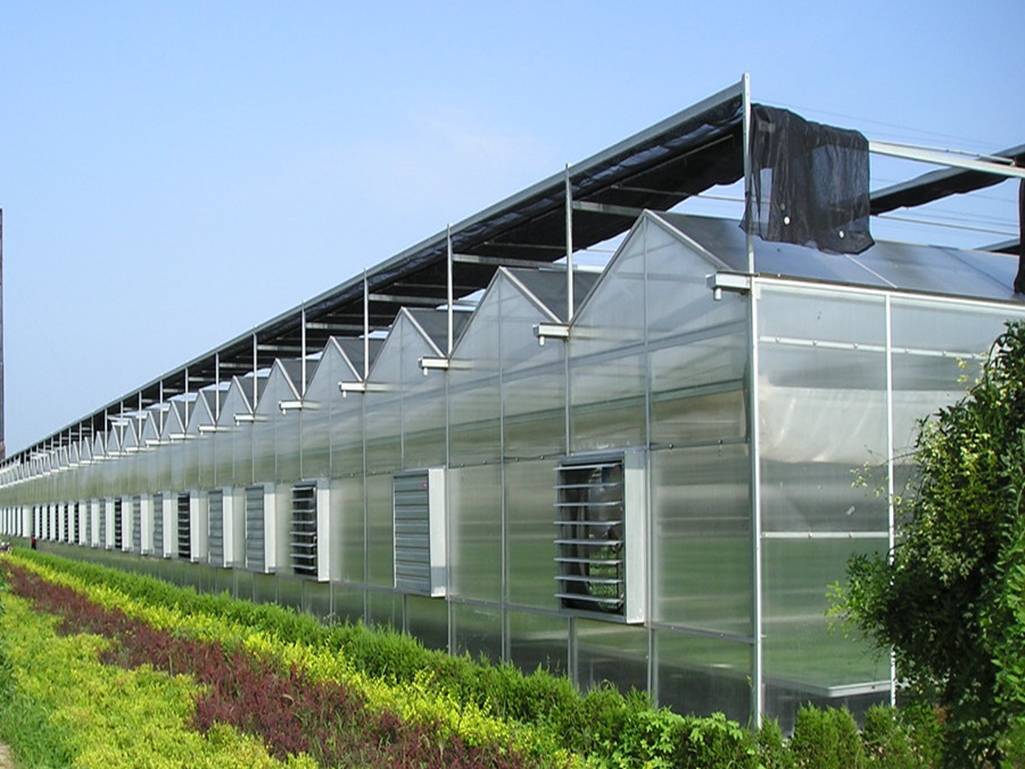

Basic IntroductionThe Venlo Polycarbonate sheet greenhouse is a globally renowned greenhouse type, designed with Dutch technology, suitable for various crops in most climate conditions
1. Polycarbonate Panel greenhouse has a hot - dip galvanized steel frame, which is high - strength, wind - and - snow - resistant, and corrosion - resistant
2. The main structure of Polycarbonate Panel greenhouse can be guaranteed for 20 years.
Dimensions and Specifications1Span Width: Usually 8m, 9.6m, 10.8m, 12.0m, etc., and can also be customized according to specific needs.
Column Spacing: Such as 4.0m, 6.0m, 8.0m, etc., with customizable options.
Gutter Height: Ranging from 3.0m to 6.0m, and can be adjusted as required.
Covering MaterialPolycarbonate sheet greenhouse adopts 6 - 12mm thick twinwall polycarbonate greenhouse, which have the characteristics of anti - UV, anti - drip, good light transmittance, excellent thermal insulation performance, and high strength, rigidity, hardness, toughness, and crack resistance. The quality of Greenhouse Polycarbonate sheet is guaranteed for 10 years.

Type	Polycarbonate sheet greenhouse
Span Width	8m/9.6m/10.8m/12m
Bay width	4m /8m
Gutter hight	3-8m
Snow load	0.5KN/M2
Wind load	0.6KN/M2
Hanging load	15KG/M2

Polycarbonate sheet greenhouse system

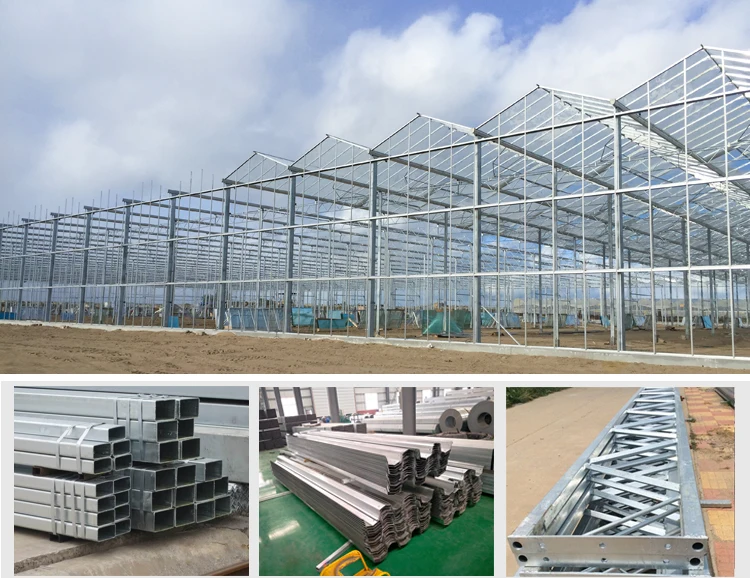

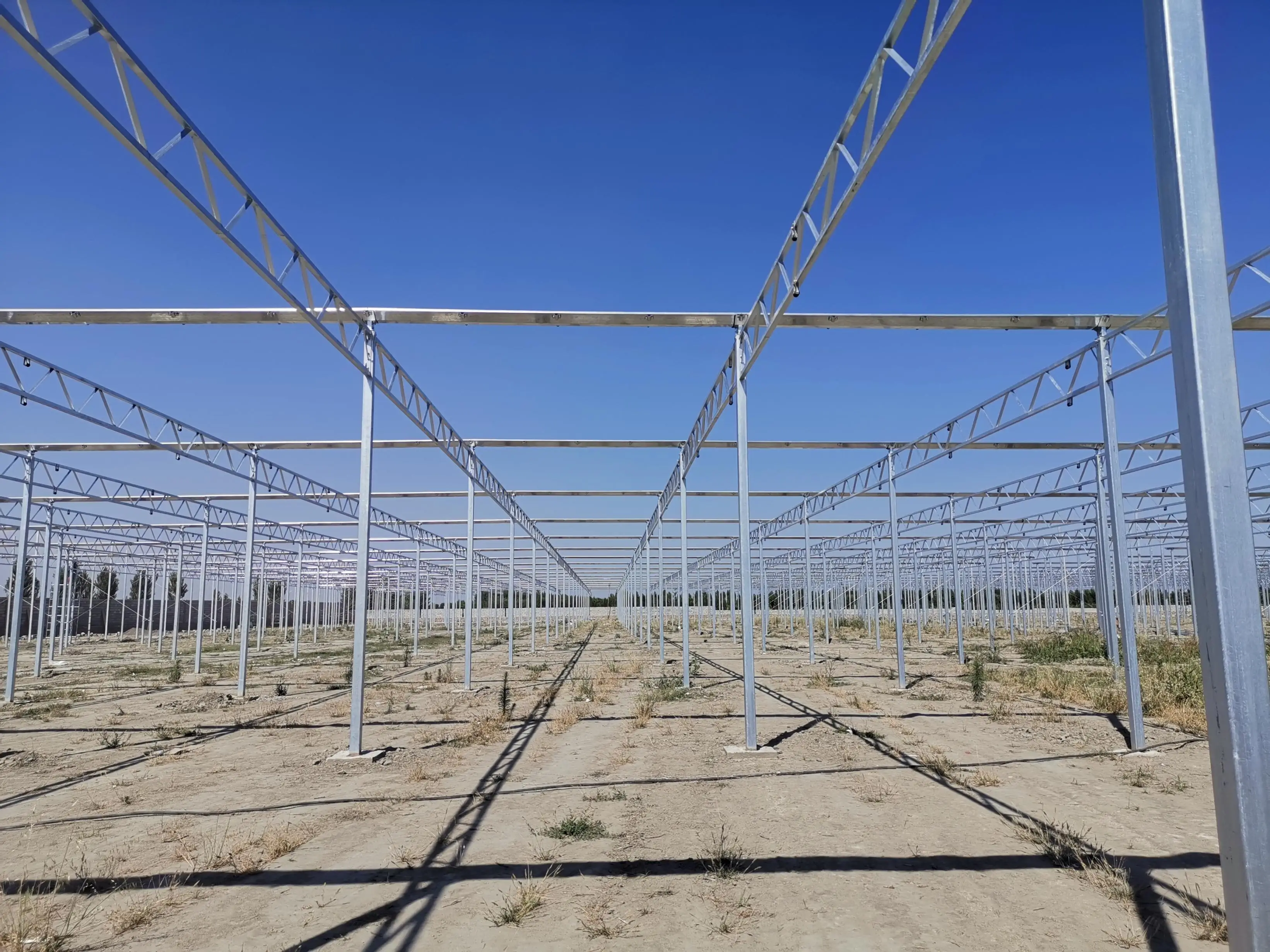

Galvanized Steel Structure

Greenhouse Polycarbonate sheet

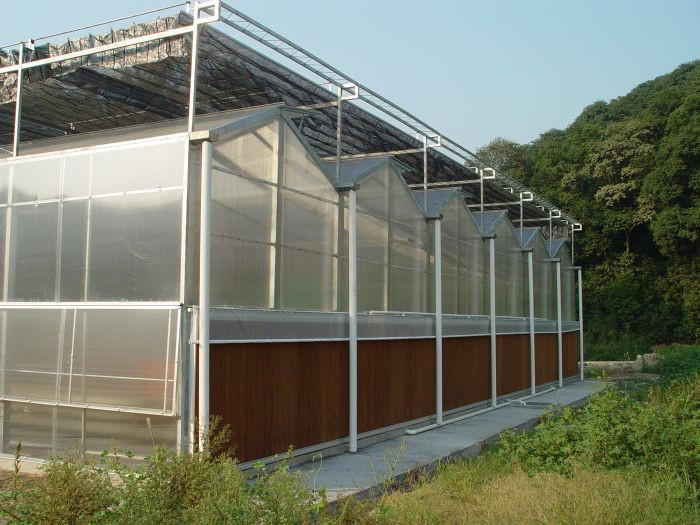

External Shading Screen

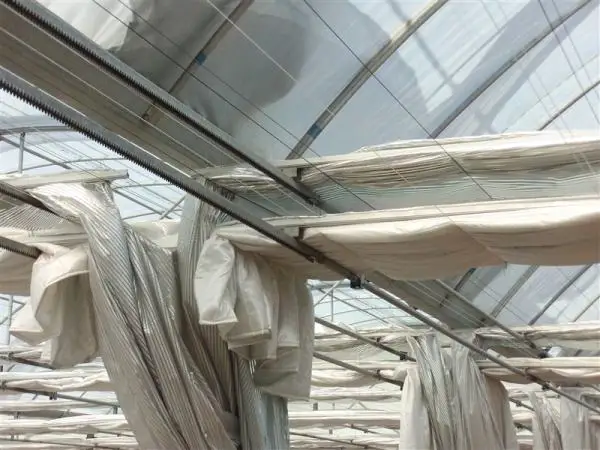

Internal Shading Screen

Internal Warming Blanket

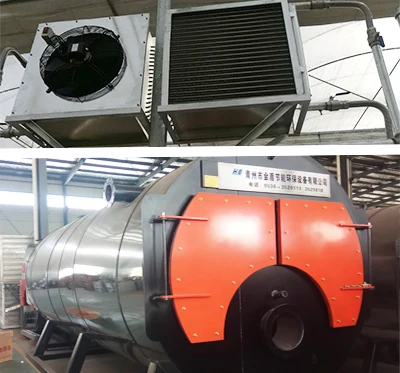

Heating System

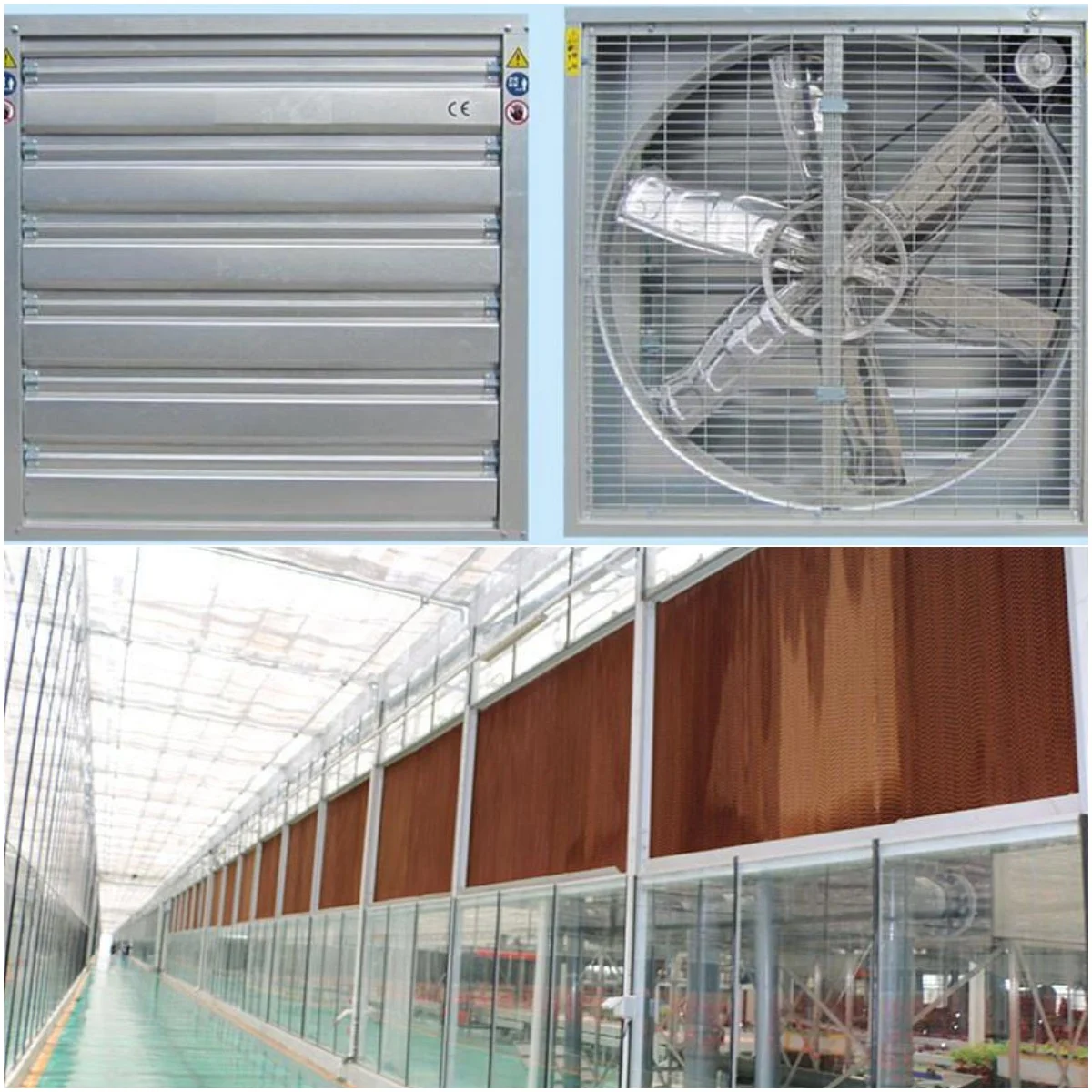

Cooling System

Electric Control system

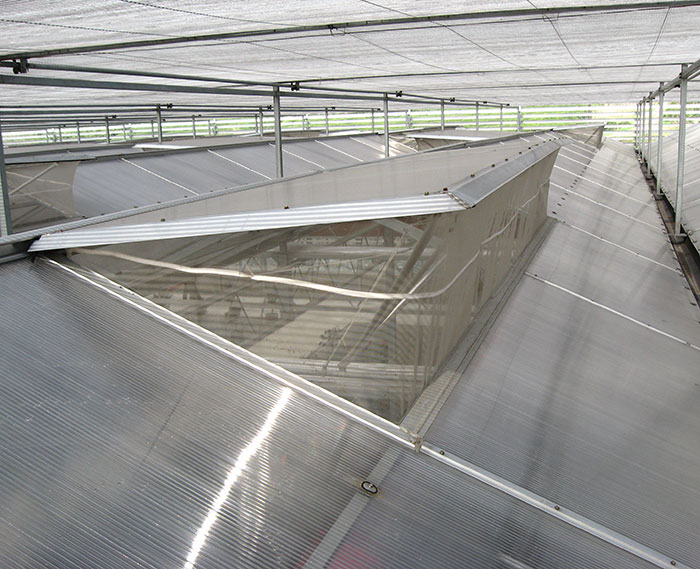

Roof Ventilation System

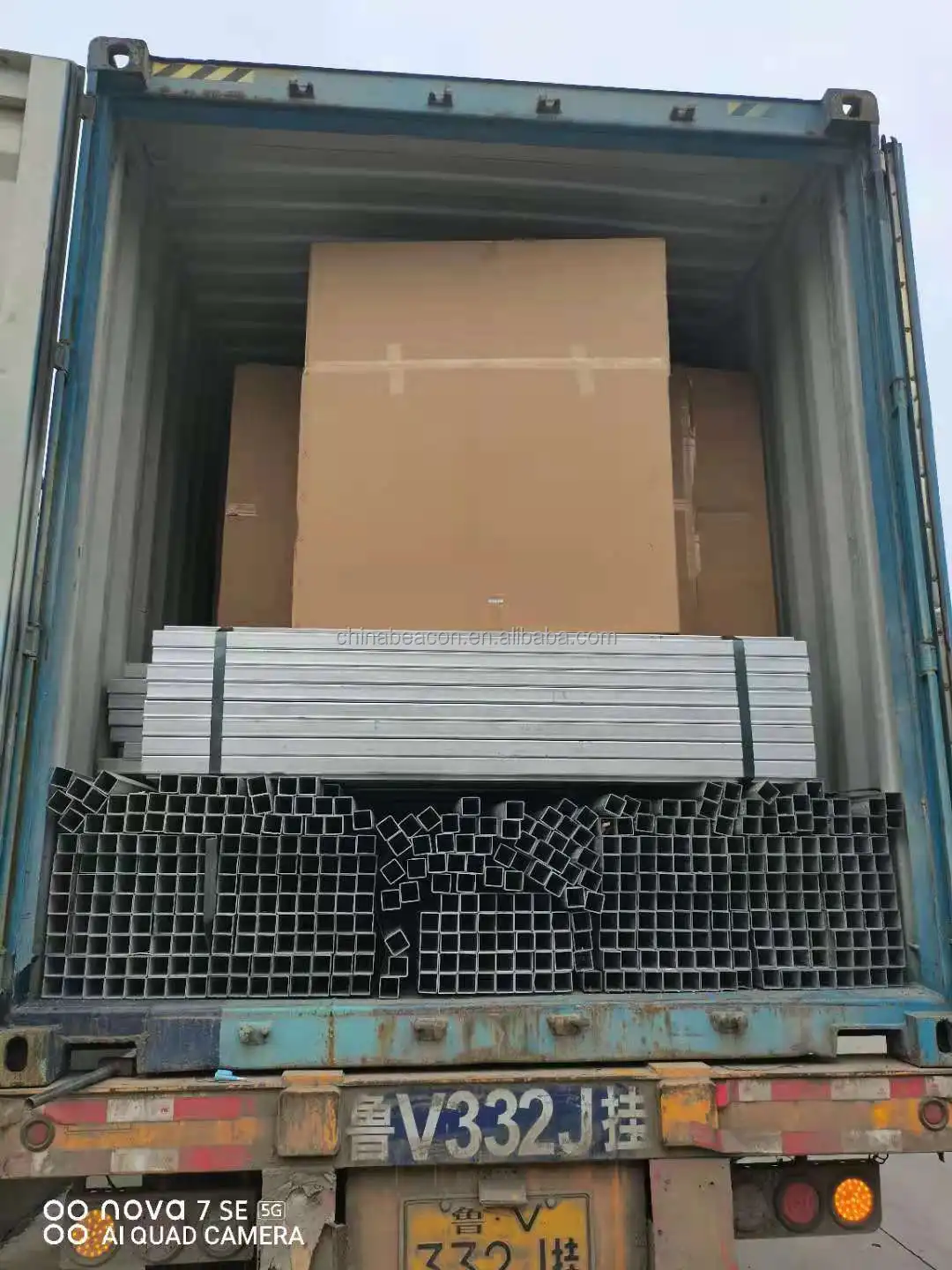

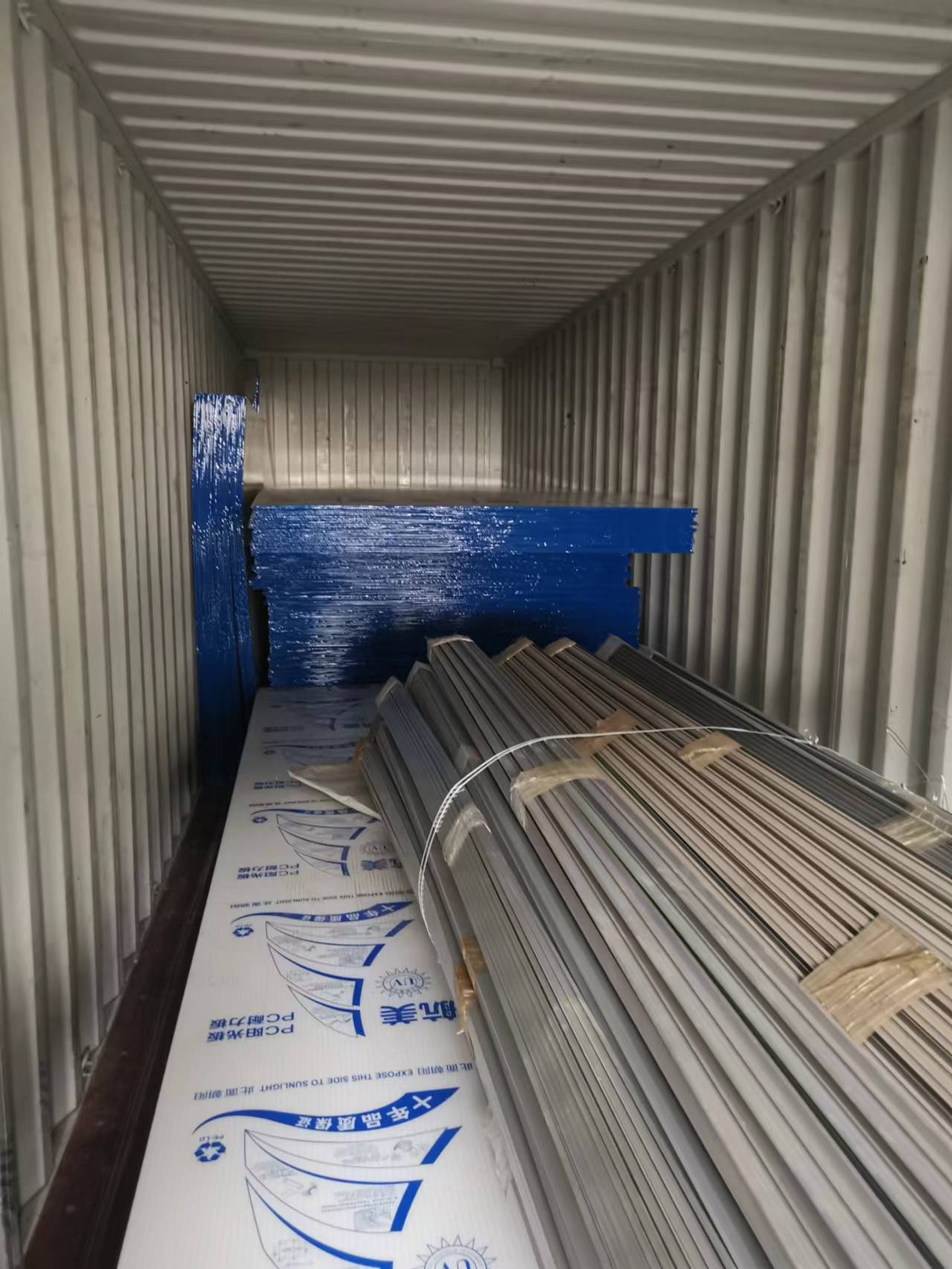

Packaging & Delivery of Polycarbonate sheet greenhouse

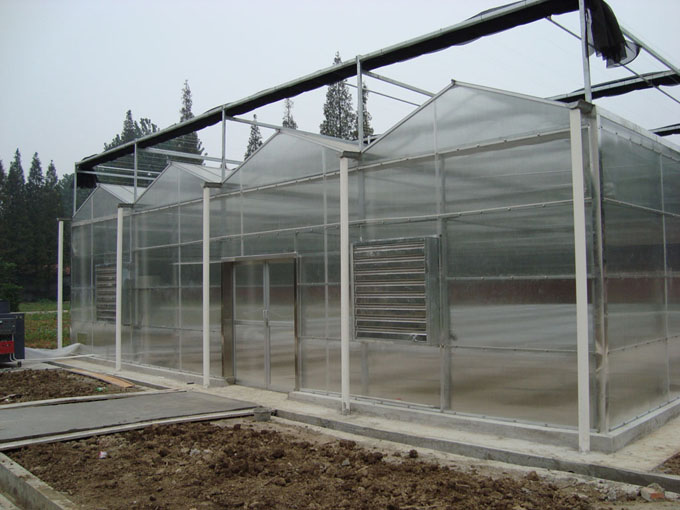

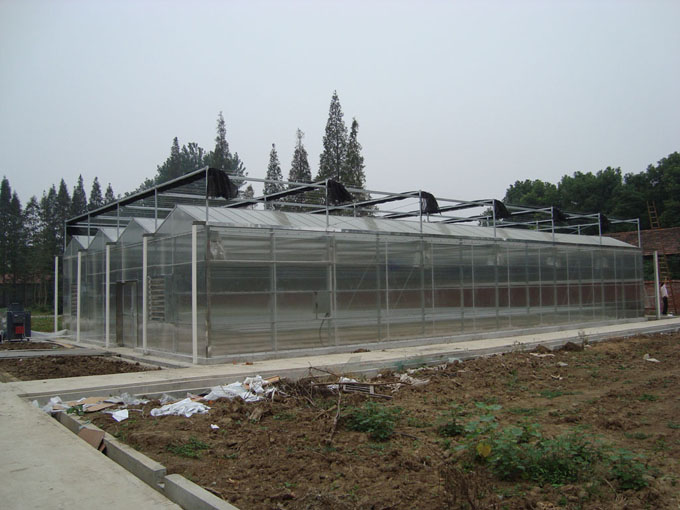

Greenhouse Project

Our Polycarbonate Panel greenhouse have exported to India, Malaysia, Singapore, Thailand, Australia, Tonga, French Polynesia, Kazakhstan, Turkmenistan, Armenia, UAE, Qatar, Saudi Arabia, Oman, Senegal, USA, Canada, and so on.

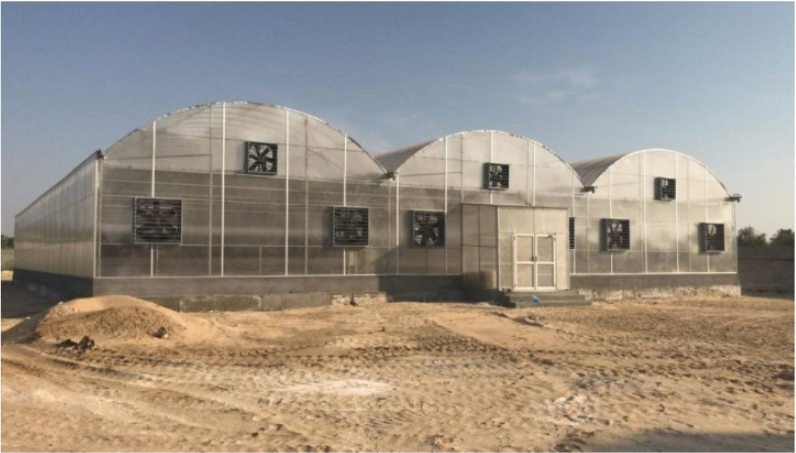

Arch type Polycarbonate Panel greenhouse

twinwall polycarbonate greenhouse
