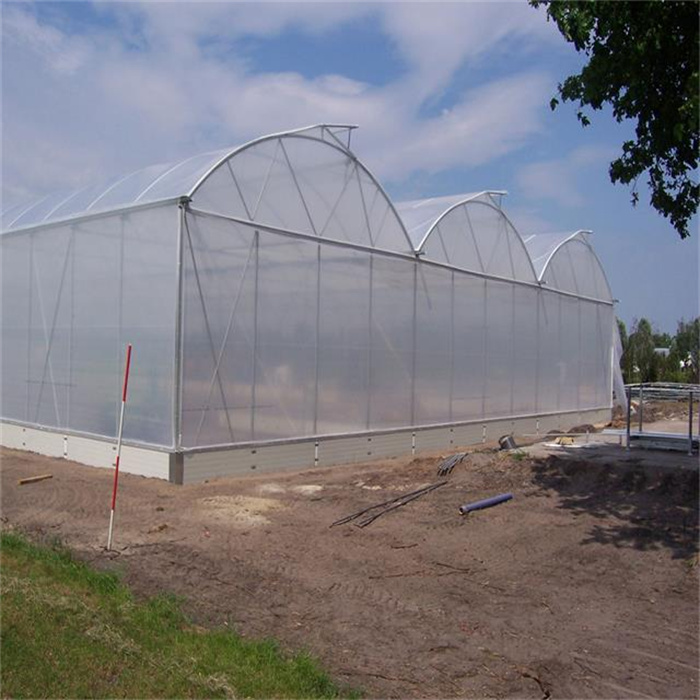

Saw Tooth Roof Vent Greenhouse

A saw tooth greenhouse (sawtooth greenhouse) is a sawtooth roof vent greenhouse specialized structural design inspired by the alternating, angular roof profile resembling a saw’s teeth. This roof vent greenhouse design maximizes natural light and airflow while providing protection from the elements, making it ideal for regions with specific climate conditions or crops requiring regulated environmental exposure.

Email

 WhatsApp

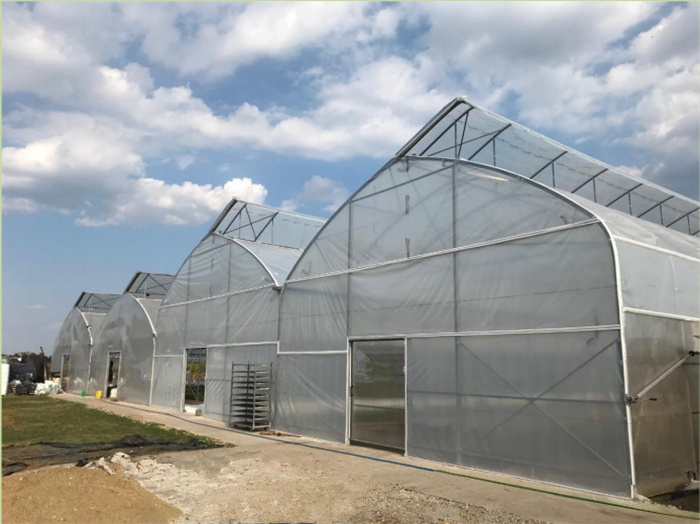

sawtooth roof vent greenhouse

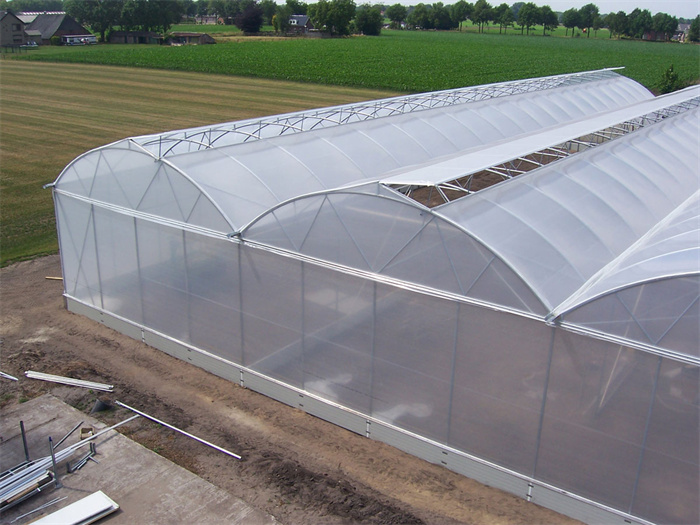

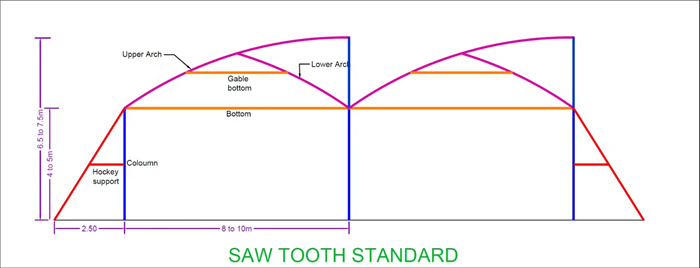

Roof Design of Saw tooth greenhouse

Angled Panels: The roof of sawtooth roof vent greenhouse consists of alternating sloped panels (typically 30–45° angles), creating a series of peaks and troughs.
The saw tooth greenhouse offers a timeless solution for optimizing natural light and airflow in horticulture. Its unique architectural design remains relevant in modern agriculture, particularly for crops requiring gentle, consistent conditions. While best suited for specific climates and crops, its blend of functionality and aesthetics makes it a valuable choice for sustainable farming and botanical applications.
Method Saw tooth greenhouse
Roof Vents (Natural) Low cost, energy-efficient
Sidewall Ventilation Simple design for small greenhouses

Method	Saw tooth greenhouse
Roof Vents (Natural)	Low cost, energy-efficient
Sidewall Ventilation	Simple design for small greenhouses

Greenhouse details

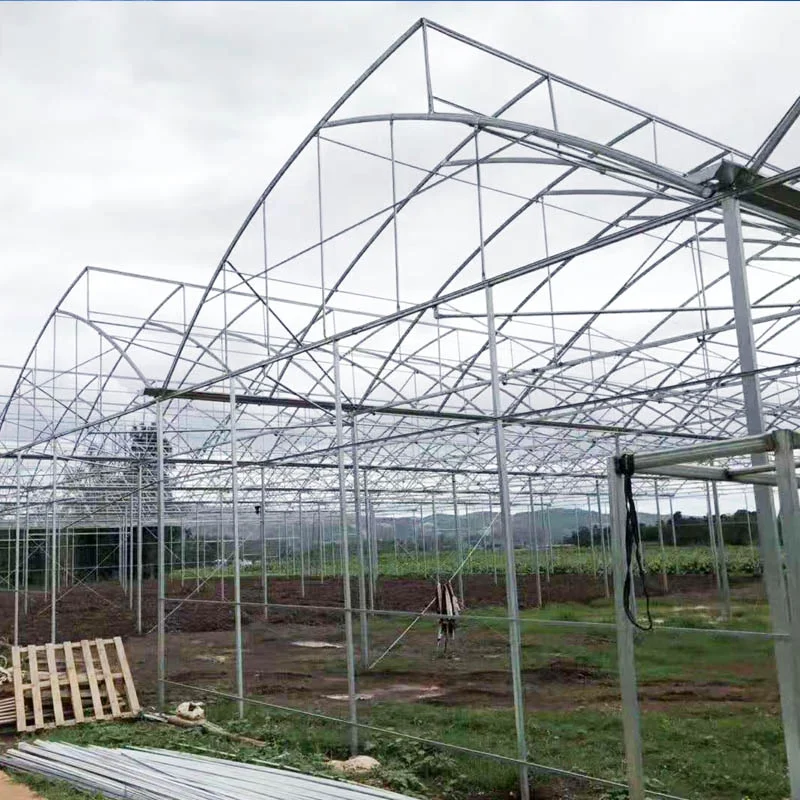

Frame

Saw tooth greenhouse Typically constructed with galvanized steel or aluminum for durability and corrosion resistance, supporting the angled roof load. The warranty period of frame is 15~20 years

Covering

PO film cover

Thickness: 120/150/200 microns. It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%

Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years

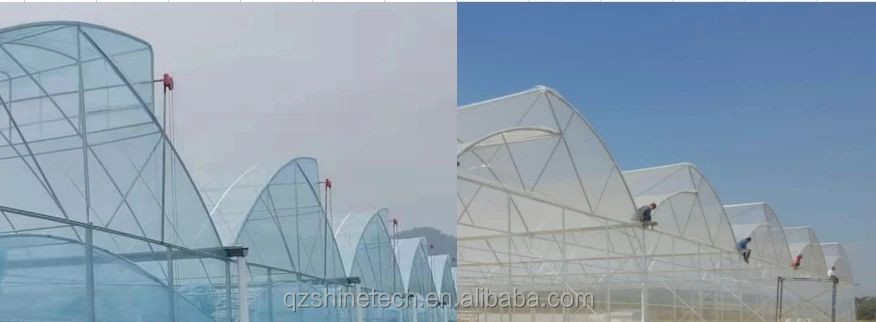

Ventilation System

The greenhouse has both side ventilation and top ventilation system.

Manual Vents: Hinged panels opened/closed by hand or via simple mechanical levers (e.g., push rods).

Automated Vents: Operated by temperature-sensitive actuators (e.g., wax motors) or electric motors connected to sensors, requiring no manual intervention.

Anti-insect net

The Anti Insect Net of sawtooth roof vent greenhouse is made by 100% virgin HDPE with stable UV. It provides protection from range of insects that can be harmful. This preventive method reduces the cost of pesticides to grow organic and natural cultivation.

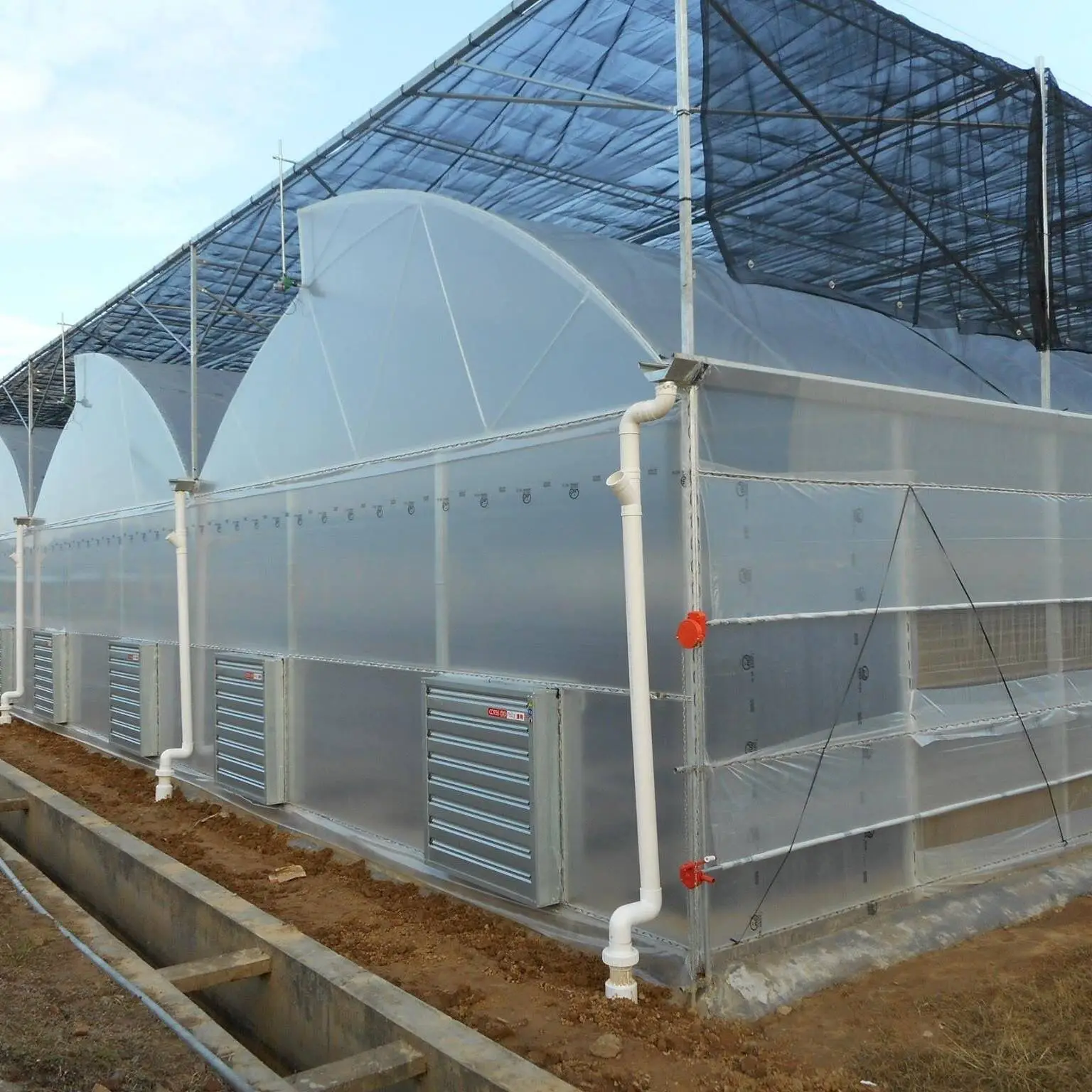

Outside Shading System

Shading net: black round wire shade net with 75% shading rate.

Function: Electric control, adjust the light intensity to
improve the ecological environment in the greenhouse and lower the temperature.

Inside Shading System

Shading net: white aluminum foil shade net with 45% shading rate.

Function: Electric control, avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.

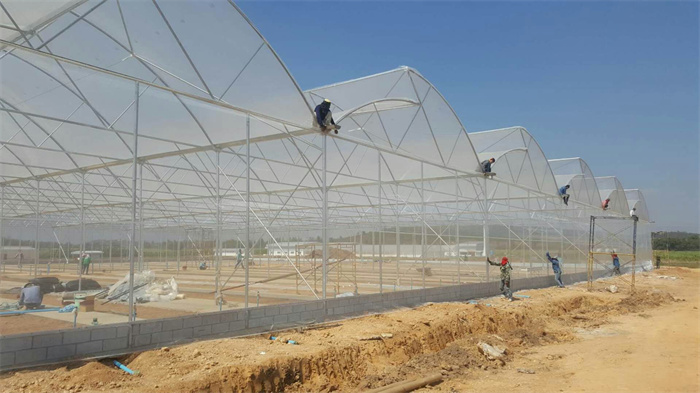

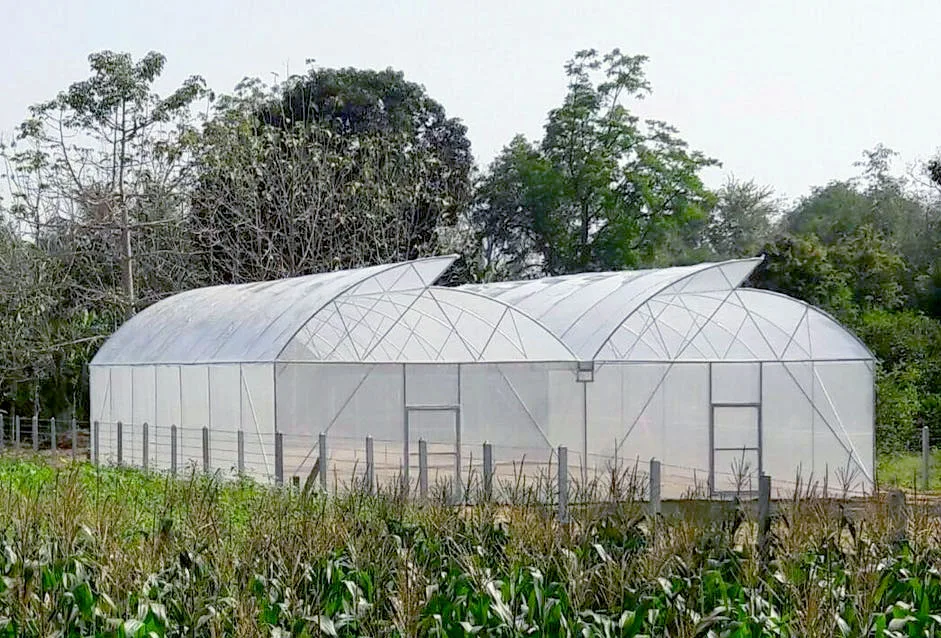

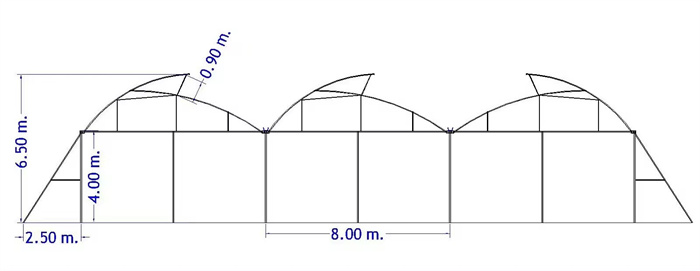

Our Saw tooth greenhouse design

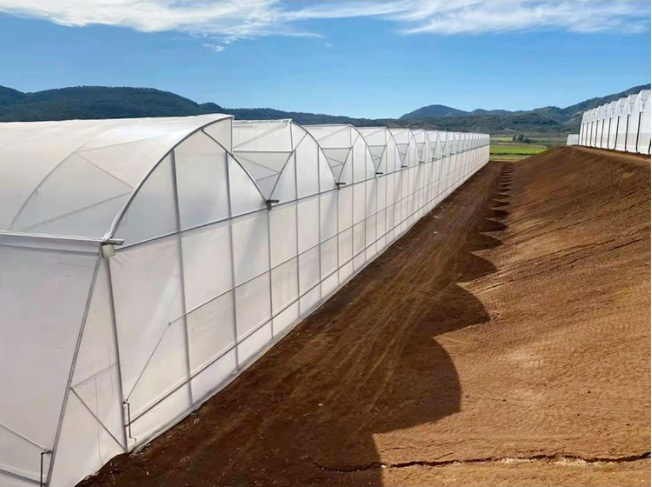

roof vent greenhouse

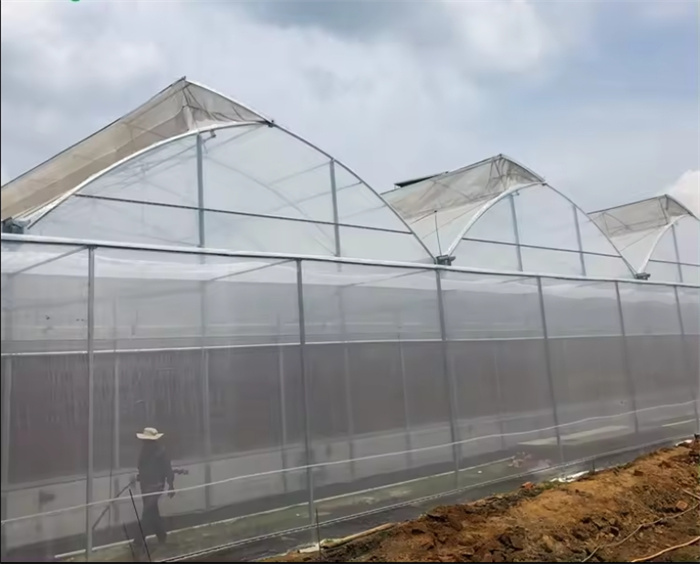

sawtooth roof vent greenhouse

Wide Application

Crop Types

Flower Cultivation: Roses, lilies, and other long-stem flowers benefit from consistent, diffused light.
Leafy Greens and Herbs: Lettuce, spinach, and basil thrive in the cool, well-ventilated environment.
Tropical Plants in Temperate Climates: Orchids or ferns requiring filtered light and steady airflow.
