Multi Span Sawtooth Roof Ventilation Greenhouse

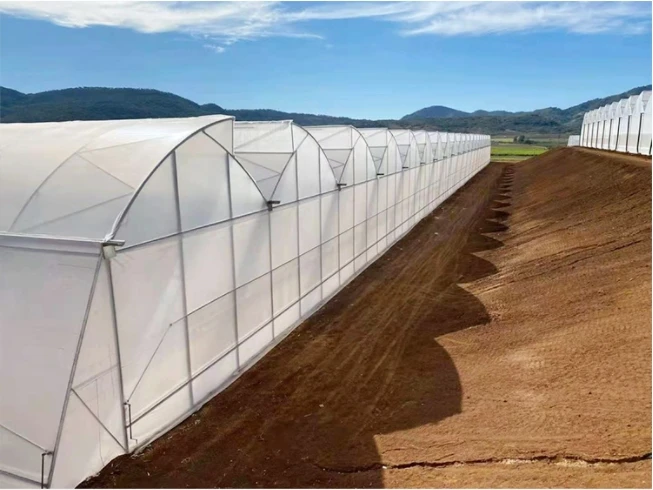

multi span sawtooth greenhouse
The Sawtooth greenhouse is a greenhouse with sawtooth. It is the most common plastic greenhouse used in troppical hot climate area, like Africa, South Asia, South America.
The Sawtooth greenhouse is a simple and practical protective cultivation facility, widely be used all over the world because of its easy construction, easy use and low investment for vegetable and flower productions.

Email

 WhatsApp

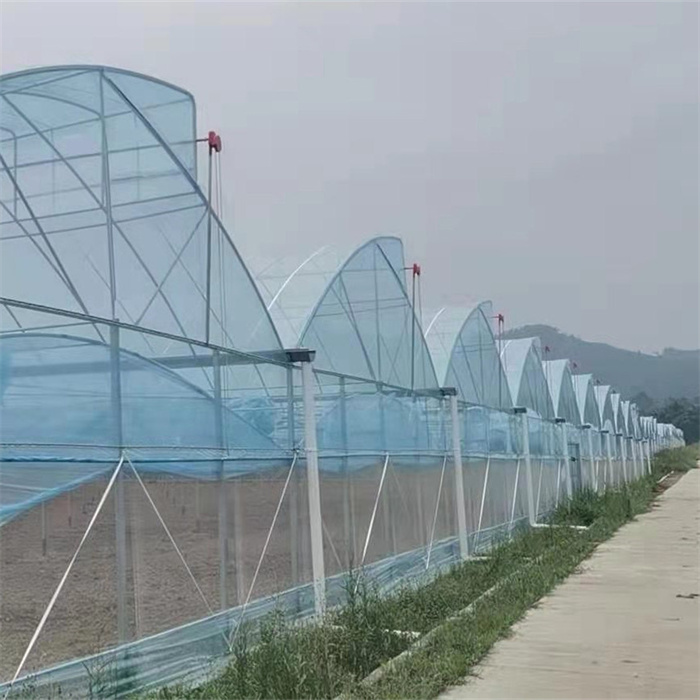

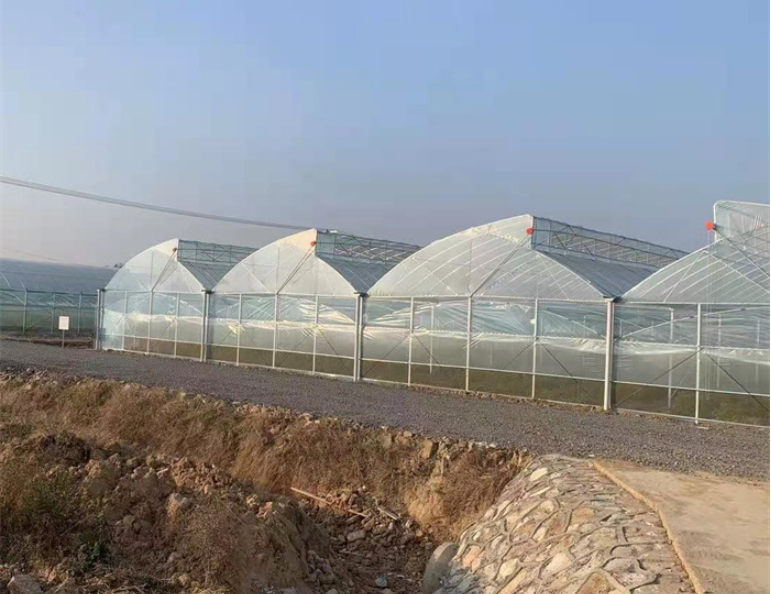

Multi span sawtooth greenhouse

Multi span Sawtooth Greenhouse is a large-scale, modular greenhouse structure characterized by its distinctive sawtooth roof design—a series of alternating peaked and valleyed roof sections that resemble the teeth of a saw. This design maximizes natural light penetration while optimizing ventilation and structural stability. Widely used in commercial horticulture, research facilities, and botanical gardens, multi-span sawtooth greenhouses are ideal for year-round cultivation of high-value crops (e.g., tomatoes, cucumbers, flowers) in regions with moderate to high sunlight exposure.

sawtooth greenhouse

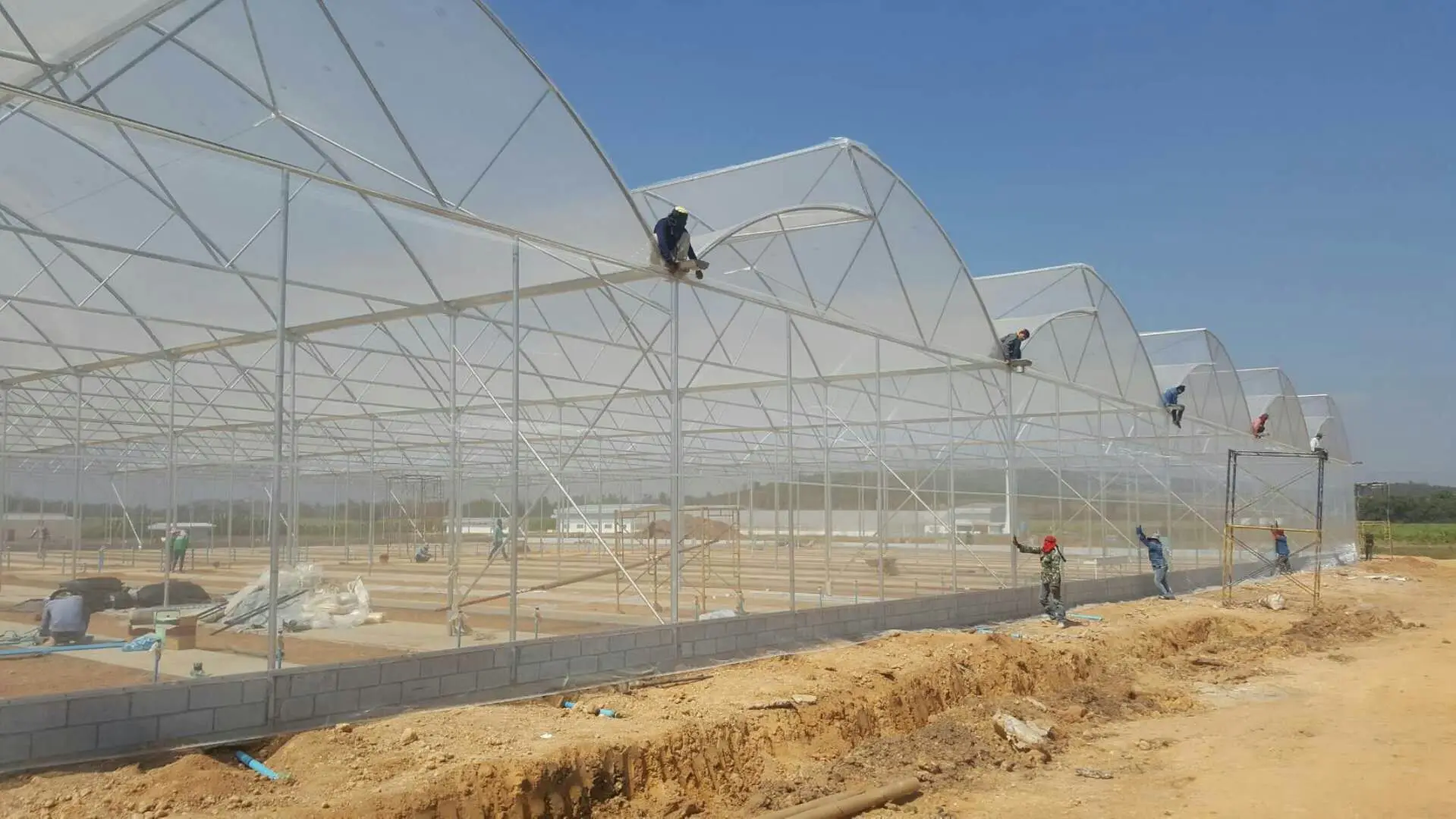

Sawtooth Roof Structure

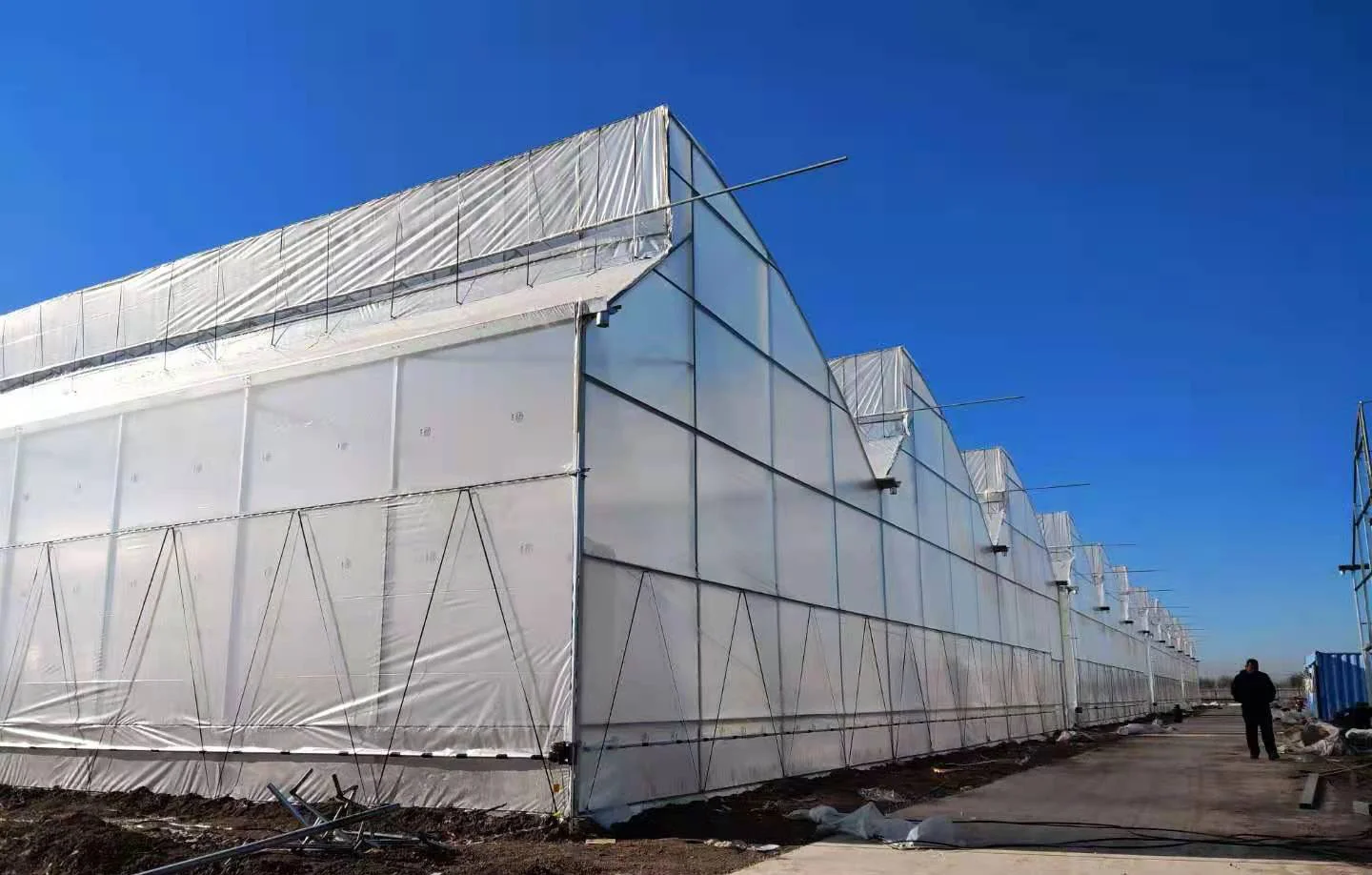

multi span sawtooth greenhouse
Product Name	Multi span sawtooth roof greenhouse
Span width	8m/9.6m (customization)
Bay width	4m (customization)
Height of Greenhouse	4-8m (customization)
Covering	150/200 micron PE/PO Film
Wind load	45~55km/m2
Max. rainfall	140mm/h
Hanging load	15~30kg/m2
Optional system	Side ventilation, roof ventilation, shading system, cooling system, drip irrigation system, fogging system, hydroponic system, etc.

Details Images

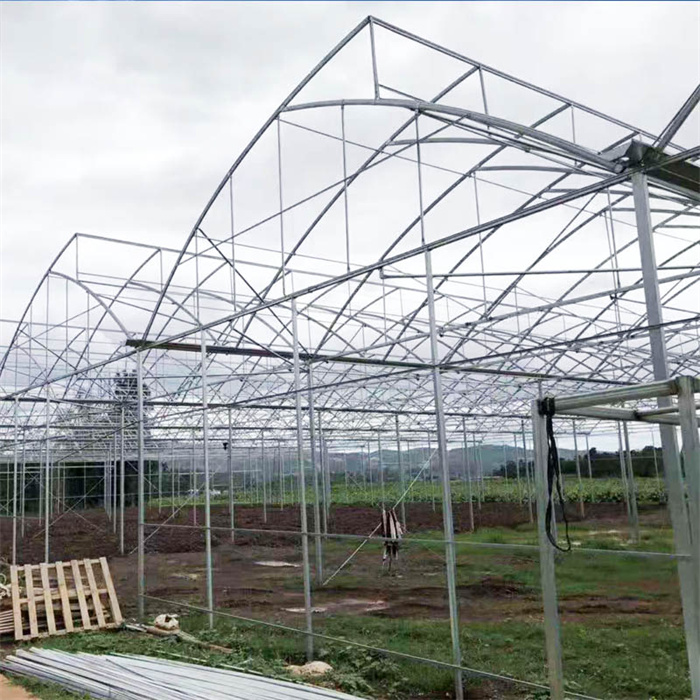

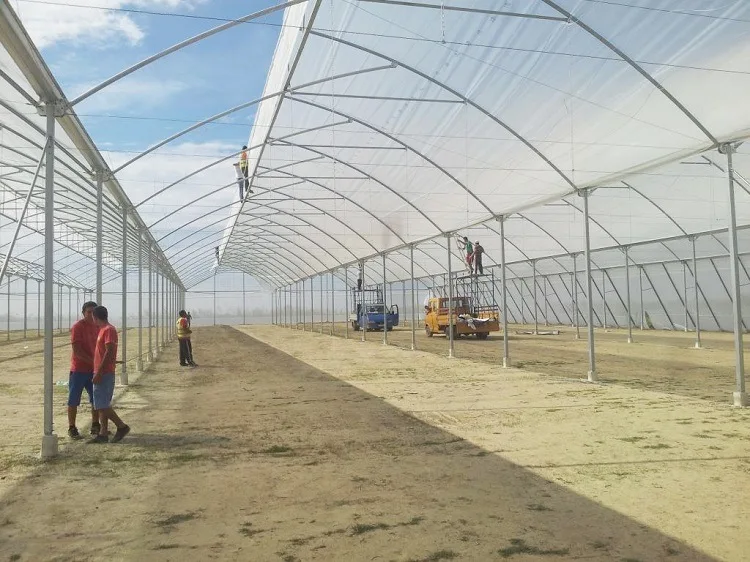

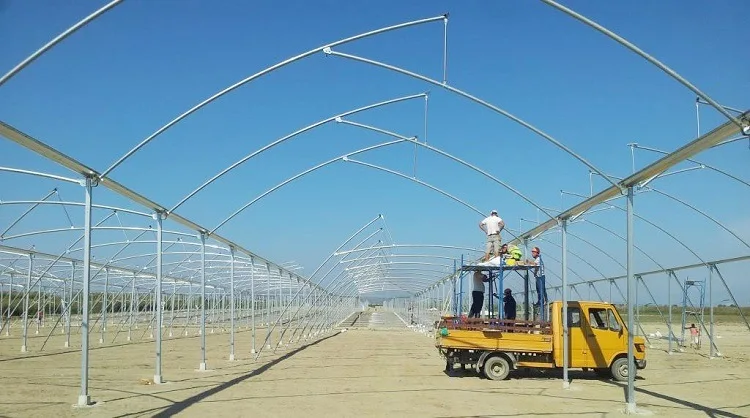

Frame

The Frame Materials of greenhouse are hot dip galvanized steel and accessories.The structure is strong and durable.

The warranty period of frame is 15~20 years

Covering

PO film cover

Thickness: 120/150/200 microns.

UV-Resistant Film: Temporary or cost-effective option for short-term setups.

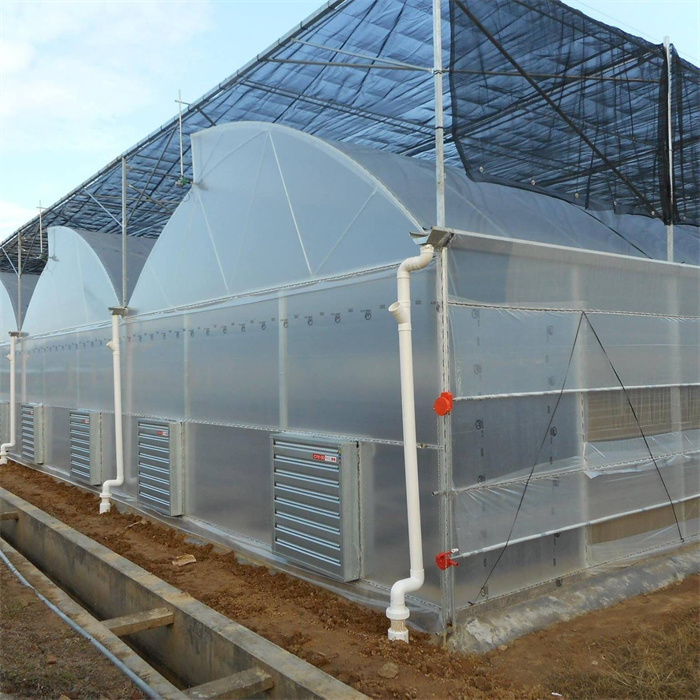

Natural Ventilation:

Vents along the north-facing roof slopes (peaks) and sidewalls for cross-ventilation; hot air rises and exits through peak vents (stack effect).
Motorized louvers or automated vents for temperature regulation.

Anti-insect net

The Anti Insect Net is made by 100% virgin HDPE with stable UV. It provides protection from range of insects that can be harmful. This preventive method reduces the cost of pesticides to grow organic and natural cultivation.

Wide Application

Wide application of sawtooth roof greenhouse

Commercial Horticulture

Large-scale production of tomatoes, cucumbers, and peppers in regions with consistent sunlight (e.g., Mediterranean climates).
Flower cultivation (e.g., roses, lilies) requiring balanced light and temperature.

Research & Botanical Gardens

Controlled environments for plant breeding or climate change studies.
Display of diverse plant collections (e.g., tropical vs. temperate species) in separate spans.
